| Feature |
>CNC aluminum body.
>L- shaped reversible head with air release.
>Fits both Schrader and Presta valve.
>Extactable flexible hose.
>Dual-function dust-cap. |
|
|
|
| |
|
|
|
|

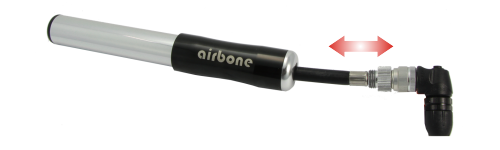

Extractable flexible hose |
| |
| |
|
|
| |
|
| |
|
| |
ZT-512 |
|
| |
 |
|
| |
 |
| |
| Specification of ZT-512-A12 |
| Head |
L-Shaped Reversible head with air releaes |
| Barrel |
CNC aluminuim |
| Handle |
CNC aluminuim |
| Capacity |
130psi
/ 9bar |
| Size |
215mm
X 45mm X 25mm |
| With tube(hose) |
336mm
X 45mm X 25mm |
| Weight |
120g |
| |
| Accessory |
Bracket x 1 |
| Allen bolt x 2 |
|
|
|
| ZT-512-A12 / Order Code |
BLACK |
YELLOW |
ORANGE |
RED |
ZT-512-SBK |
ZT-512-YBK |
ZT-512-OBK |
ZT-512-RBK |
BULE |
PURPLE |
GREEN |
ZT-512-BLBK |
ZT-512-PUBK |
ZT-512-GBK |
|
| |
| |
ZT-512L |
|
| |
 |
|
|
| |
| Specification of ZT-512L-A12 |
| Head |
L-Shaped Reversible head with air releaes |
| Barrel |
CNC aluminuim |
| Handle |
CNC aluminuim |
| Capacity |
160psi
/ 11bar |
| Size |
265mm
X 45mm X 25mm |
| With tube(hose) |
439mm
X 45mm X 25mm |
| Weight |
137g |
|
|
|
| ZT-512L-A12 / Order Code |
BLACK |
YELLOW |
ORANGE |
RED |
ZT-512L-SBK |
ZT-512L-YBK |
ZT-512L-OBK |
ZT-512L-RBK |
BULE |
PURPLE |
GREEN |
ZT-512L-BLBK |
ZT-512L-PUBK |
ZT-512L-GBK |
|
