Feature

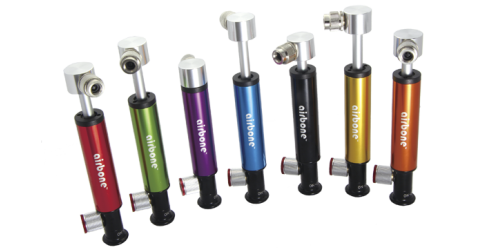

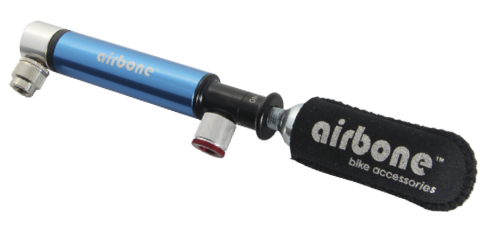

Small, but powerful and compact ZT-702 Supernova pump with CO2 Inflator integrated construction makes more convenient for the bikers.

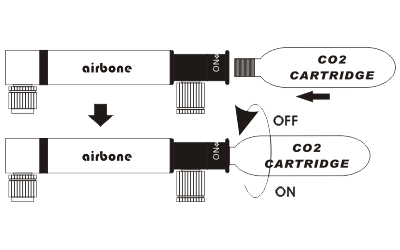

The part of CO2 inflator accepts all treaded CO2 cartridge and screw the cartridge into the end of the CO2 inflator, just twist the cartridge by forward or backward to turn on or turn off CO2 and control the flow of CO2, very easy and quickly to inflate the tire in a second.

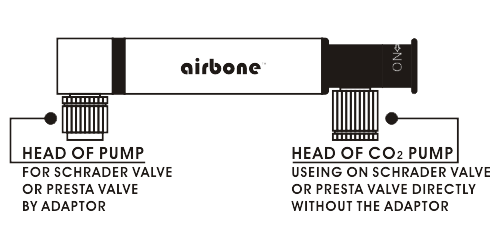

THE PART OF HAND PUMP       THE PART OF CO2 INFLATOR
USING ON SCHRADER:

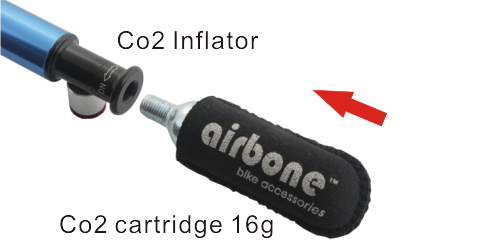

SCREW ON SCHRADER VALVE DIRECTLY.		     SCREW THE CO2 CARTRIDGE INTO THE
END OF CO2 PUMP TIGHTLY.

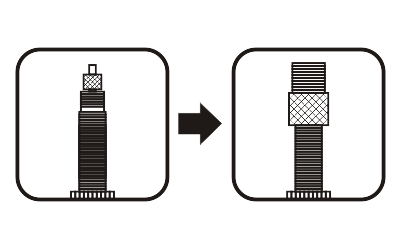

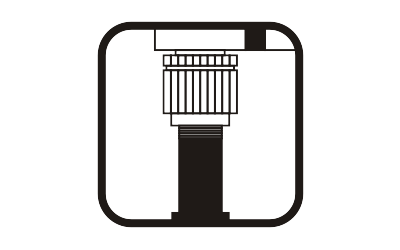

USING ON PRESTA:
SCREW THE ADAPTOR ON PRESTA VALVE
FIRST, THEN SCREW THE HEAD OF PUMP

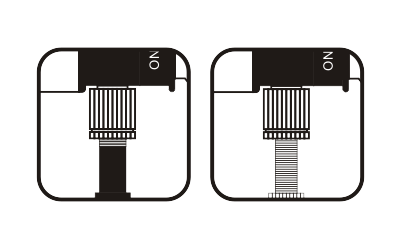

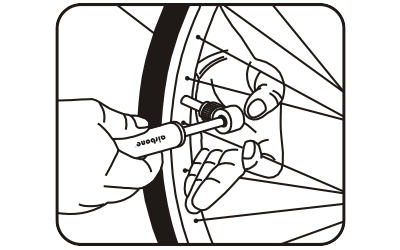

ONTO ADAPTOR.		 SCREW THE HEAD OF CO2 PUMP ON THE
SCHRADER OR PRESTA VALVE DIRECTLY.
ONE PALM AGAINST THE TOP OF PUMP
, ANOTHER ONE IN THE END OF PUMP
AND HOLD ON THE BARREL, THEN

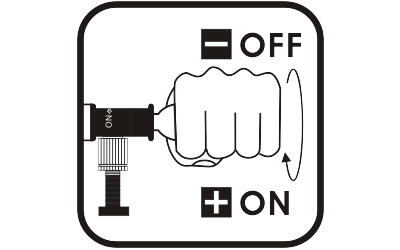

INFLATE THE TIRE.		 HOLD ON THE CARTRIDGE
AND LOOSEN LESS IN AN
ANTICLOCKWISE DIRECTION
TO RELEASE CO2.



Specification
PUMP
Barrel Aluminuim
Capacity 160psi / 11bar
Size 21mm X 36 mm X 130mm
Weight 78g
Co2 Inflator
Aluminum body
Accepts all treaded Co2 cartridge
fits both schrader and presta valve without adaptor

Accessory Adaptor x 1
Bracket x 1
Allen bolt x 2
